Hastelloy G3-(Hastelloy G3 )(UNS N06985) (W.Nr. 2.4619)(Nicrofer 4023 hMo)

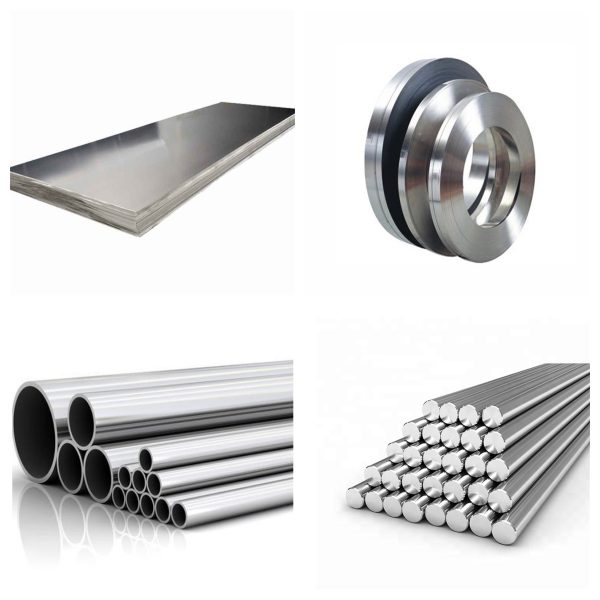

Available forms of Hastelloy G3
– Round bars、wire、forgings
– sheet、plate
– seamless pipe and tube、welded pipe and tube
– pipe fittings and flanges
– non-standard customised parts

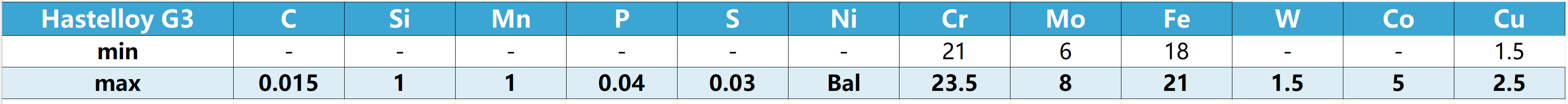

1.Hastelloy G3 LIMITING CHEMICAL COMPOSITION, %
2.Hastelloy G3 Introduction
A nickel-chromium-iron alloy with additions of molybdenum and copper. It has good weldability and resistance to intergranular corrosion in the welded condition. The low carbon content helps prevent sensitization and consequent intergranular corrosion of weld heat-affected zones. Used for flue-gas scrubbers and for handling phosphoric and sulfuric acids.

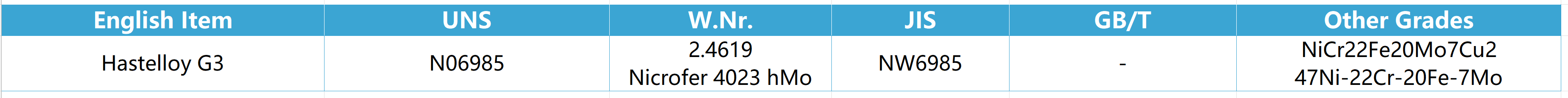

3.Hastelloy G3 MAJOR SPECIFICATIONS
4.HASTELLOY G3 PHYSICAL CONSTANTS AND THERMAL PROPERTIES
Density, Ib/in3
……………………………………………………………….0.294
g/cm3
………………………………………………………………. 8.14
Melting Point, °F
……………………………………………..2300 – 2450
Melting Point,°C
……………………………………………..1260 – 1340
Specific Heat, Btu/lb •°F
…………………………………………….0.108
J/kg •°C
…………………………………………………. 452
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F
……..8.1
24 – 100°C, μm/m •°C
……… 14.6
Thermal Conductivity, Btu • in/ft2• h•°F
…………………………69
W/m•°C
…………………………………… 10.0

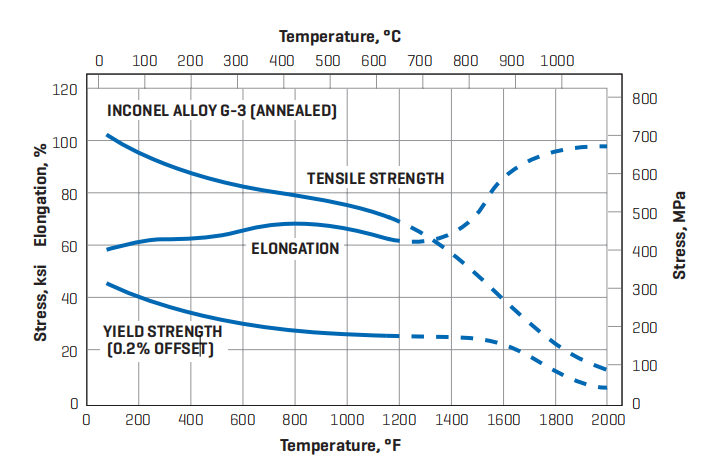

5.Hastelloy G-3 TYPICAL MECHANICAL PROPERTIES
(Annealed)
Tensile Strength, ksi
……………………………………………………… 100
MPa
…………………………………………………… 690
Yield Strength (0.2% Offset), ksi
…………………………………….47
MPa
………………………………. 320
Elongation, %
……………………………………………………………………50
