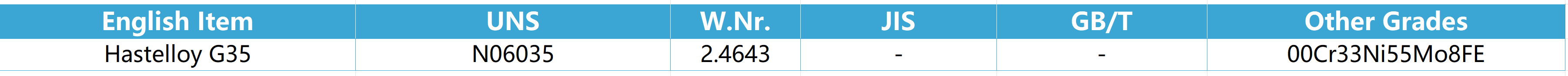

Hastelloy G35-（Hastelloy G35）(UNS N06035) (W.Nr. 2.4643)
Available forms of Hastelloy G35
– Round bars、wire、forgings
– sheet、plate
– seamless pipe and tube、welded pipe and tube
– pipe fittings and flanges
– non-standard customised parts

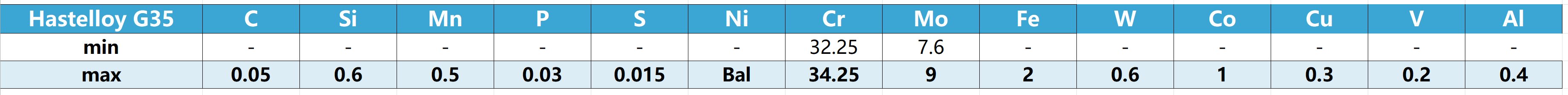

1.Hastelloy G35 LIMITING CHEMICAL COMPOSITION, %
2.Hastelloy G35 Introduction
Hastelloy G-35 is an upgraded product of G-30, it has excellent corrosion resistance in wet process phosphoric acid production environment widely used in fertilizer manufacturing, where it performs far better than G-30 and stainless steel . It is also resistant to localized corrosion and chloride stress corrosion cracking in chloride-containing media. The high chromium content makes it very resistant to corrosion by other oxidizing acids such as nitric acid and nitric acid-containing mixtures. The higher molybdenum content makes it moderately resistant to reducing acids. Unlike other nickel-chromium-molybdenum alloys, Hastelloy G-35 resists dealloying elemental corrosion by hot sodium hydroxide well.
3.Hastelloy G35 MAJOR SPECIFICATIONS
4.Hastelloy G35 PHYSICAL PROPERTIES
| Density [g/cm3] | 8.72 |
| Melting point [oC] | 1332-1361℃ |
5.Hastelloy G35 MECHANICAL PROPERTIES OF BARS
(1)Hardness
| Cold Work % | Unaged | 200 hours/200℃ | 100 hours/ 500℃ |
| Annealing | Rb 90 | / | / |
| 10 | Rb 98 | Rb 100 | Rb 93 |
| 20 | RC 29 | RC 26 | RC 25 |
| 30 | RC 32 | RC 34 | RC 34 |
| 40 | RC 35 | RC 38 | RC 40 |
| 50 | RC 36 | RC 39 | RC 41 |
| 60 | RC 40 | RC 43 | RC 44 |
| 70 | RC 41 | RC 43 | RC 46 |
(2)Room temperature stretching function
| Shape | Tensile strength MPa | 0.2% yield strength MPa | 0.2% yield strength MPa | Section reduction rate % |
| Sheet, 0.71mm thick | 689.5 | 324.1 | 56 | – |
| Sheet, 3.2mm thick | 689.5 | 351.6 | 56 | – |
| Sheet, 6.4mm thick | 675.7 | 317.2 | 55 | – |
| Sheet, 9.5mm thick | 689.5 | 310.3 | 65 | 68 |
| Sheet, 12.7mm thick | 689.5 | 317.2 | 64 | 77 |
| Plate, 19.1mm thick | 675.7 | 324.1 | 65 | 67 |
| Plate, thickness 31.8mm | 682.6 | 310.3 | 60 | – |
| Bar, thickness 25.4mm | 689.5 | 317.2 | 60 | – |
Solution heat treatment temperature is 1177℃, rapid air cooling or water quenching.
