Hastelloy X -（Hastelloy X ）(UNS N06002) (W.Nr. 2.4665)
Available forms of Hastelloy X
– Round bars、wire、forgings
– sheet、plate
– seamless pipe and tube、welded pipe and tube
– pipe fittings and flanges
– non-standard customised parts

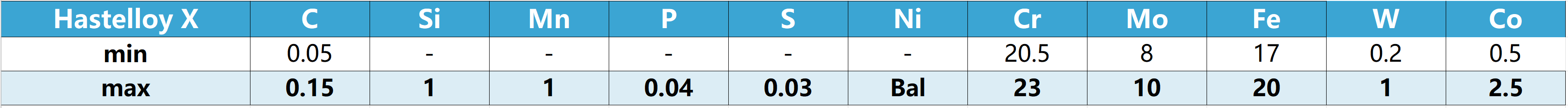

1.Hastelloy X LIMITING CHEMICAL COMPOSITION, %
2.Hastelloy X Introduction
A nickel-chromium-iron-molybdenum alloy with outstanding strength and oxidation resistance at temperatures to 2200°F (1200°C). Matrix stiffening provided by the molybdenum content results in high strength in a solid-solution alloy having good fabrication characteristics. Used in gas turbines, industrial furnaces, heat-treating equipment and nuclear engineering.

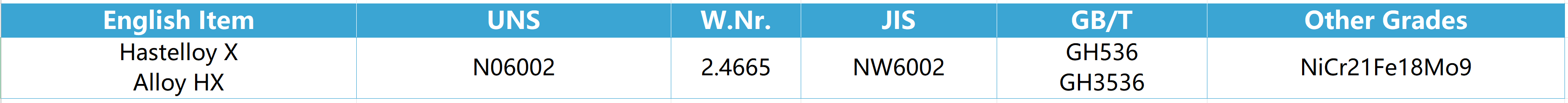

3.Hastelloy X MAJOR SPECIFICATIONS
4.HASTELLOY X PHYSICAL CONSTANTS AND THERMAL PROPERTIES
Density, Ib/in3
……………………………………………………………….0.297
g/cm3
………………………………………………………………. 8.22
Melting Point, °F
……………………………………………..2300 – 2470
Melting Point,°C
……………………………………………..1260 – 1355
Specific Heat, Btu/lb •°F
…………………………………………….0.110
J/kg •°C
…………………………………………………. 461
Permeability at 200 Oersted (15.9 kA/m)
…………….. 1.0110
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F
…….. 7.4
20 – 100°C, μm/m •°C
……… 13.3
Thermal Conductivity, Btu • in/ft2• h•°F
…………………….. 80.4
W/m•°C
…………………………………… 11.6
Electrical Resistivity, ohm • circ mil/ft
……………………….. 698
μΩ•m
………………………………………… 1.16
5.HASTELLOY X TYPICAL MECHANICAL PROPERTIES
