inconel601 （inconel601）(UNS N06601) (W.Nr. 2.4851)（NiCr23Fe）
Available forms of inconel601
– Round bars、wire、forgings
– sheet、plate
– seamless pipe and tube、welded pipe and tube
– pipe fittings and flanges
– non-standard customised parts

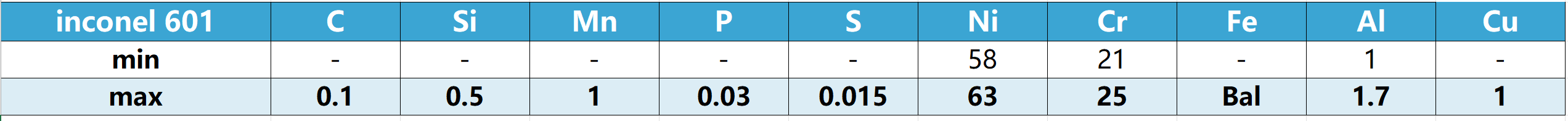

1.inconel601 LIMITING CHEMICAL COMPOSITION, %
2.inconel601 Introduction
A nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high-temperature corrosion. It also has high mechanical properties at elevated temperatures. Used for industrial furnaces; heat-treating equipment such as baskets, muffles, and retorts; petrochemical and other process equipment; and gas-turbine components.

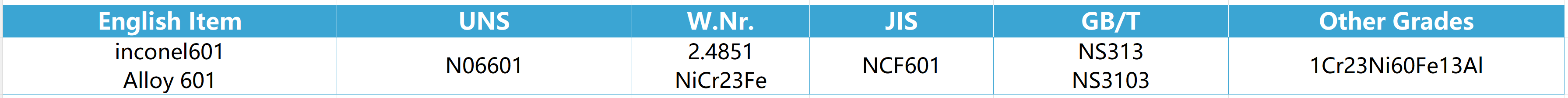

3.inconel601 MAJOR SPECIFICATIONS
4.inconel 601 PHYSICAL CONSTANTS AND THERMAL PROPERTIES
Density, Ib/in3
………………………………………………………………0.293
g/cm3
………………………………………………………………. 8.11
Melting Range, °F
……………………………………………2480 – 2571
Melting Range,°C
……………………………………………..1360-1411
Specific Heat, Btu/lb•°F
…………………………………………….0.107
J/kg•°C
………………………………………………….. 448
Curie Temperature, °F
……………………………………………….<-320
Curie Temperature,°C
……………………………………………….<-196
Permeability at 200 Oersted (15.9 kA/m)
………………..1.003
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F
……7.60
20 – 100°C, μm/m •°C
…….13.75
Thermal Conductivity, Btu • in/ft2•h•°F
…………………………78
W/m •°C
…………………………………… 11.2
Electrical Resistivity, ohm • circ mil/ft
…………………………. 717
μΩ•m
………………………………………… 1.19

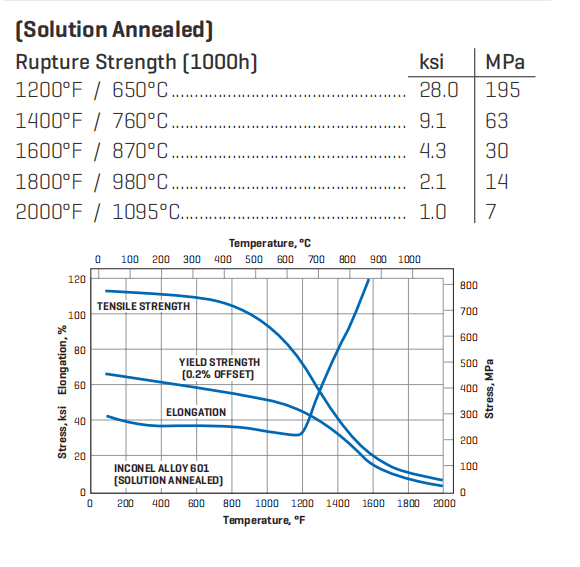

5.inconel 601 TYPICAL MECHANICAL PROPERTIES
