inconel625 （inconel625 ）(UNS N06625) (W.Nr. 2.4856)(NiCr22Mo9Nb)

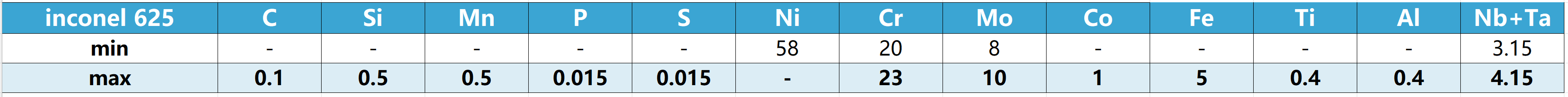

1.inconel625 LIMITING CHEMICAL  COMPOSITION, %

---

2.inconel625 Introduction

A nickel-chromium-molybdenum alloy with  an addition of niobium that acts with the  molybdenum to stiffen the alloy’s matrix  and thereby provide high strength without a  strengthening heat treatment. The alloy resists  a wide range of severely corrosive environments  and is especially resistant to pitting and  crevice corrosion. Used in chemical processing,  aerospace and marine engineering, pollutioncontrol equipment and nuclear reactors.

---

3.inconel625 MAJOR  SPECIFICATIONS

---

4.inconel 625 PHYSICAL CONSTANTS  AND THERMAL  PROPERTIES

Density, Ib/in3

………………………………………………………………0.305

g/cm3

………………………………………………………………. 8.44

Melting Range, °F

……………………………………………2350 – 2460

Melting Range, °C

……………………………………………1290 – 1350

Specific Heat, Btu/lb•°F

…………………………………………….0.098

J/kg•°C

………………………………………………….. 410

Curie Temperature, °F

……………………………………………….<-320

Curie Temperature, °C

……………………………………………….<-196

Permeability at 200 Oersted (15.9 kA/m)

……………… 1.0006

Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F

…….. 7.1

21 – 93°C, μm/m •°C

………… 12.8

Thermal Conductivity, Btu • in/ft2•h•°F

…………………………68

W/m •°C

………………………………………9.8

Electrical Resistivity, ohm • circ mil/ft

…………………………. 776

μΩ•m

………………………………………… 1.29

---

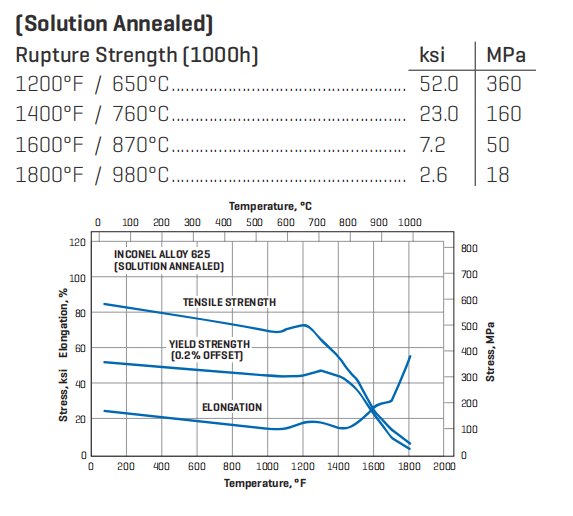

5.inconel 625 TYPICAL MECHANICAL  PROPERTIES

---
