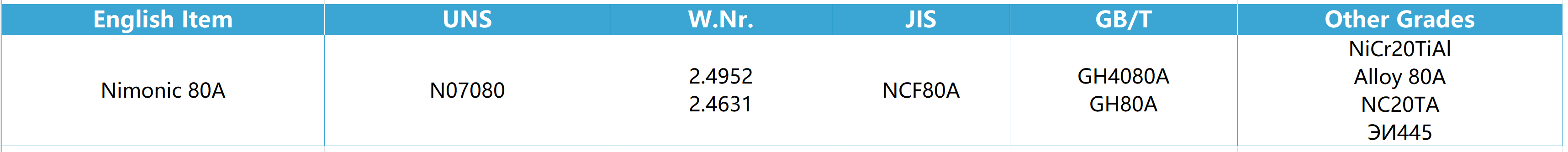

Nimonic 80A-(Nimonic 80A) (N07080) (W.Nr.2.4952)(W.Nr.2.4631) (NCF80A) (NiCr20TiAl )(Alloy 80A) (NC20TA) (ЭИ445)
Available forms of Nimonic 80A
– Round bars、Wire、Forgings
– Sheet、Plate、Strip steel
– Seamless pipe and tube、Welded pipe and tube
– Pipe fittings and flanges
– Non-standard customised parts

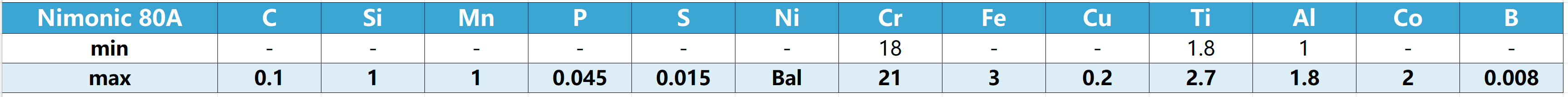

1.Nimonic 80A LIMITING CHEMICAL COMPOSITION, %
2.Nimonic 80A Introduction
NIMONIC alloy 80A is a wrought, age-hardened alloy that is strengthened by additives like titanium, aluminium and carbon. It is manufactured by high-frequency melting and casting in air. It is similar to NIMONIC alloy 75. It has good corrosion and oxidation resistance. The creep rupture and tensile properties are high at 815°C (1500°F).
3.Nimonic 80A MAJOR SPECIFICATIONS
4.Nimonic 80A Physical Properties
| Properties | Metric | Imperial |
| Density | 8.19g/cm³ | 0.296 lb./in³ |
| Tensile strength (annealed) | 1250 Mpa | 181 ksi |
| Yield strength (annealed) | 780 Mpa | 113 ksi |
| Elongation at Break | 30% | 30% |
