Product Specification and Size :
Product Specifications and Coated Types
Specifications | Size Range | Coated Types |
---|---|---|
Steel Grade: 304, 304L Surface Finish: 2B, 2D |
Thickness: 0.4-3.0mm Width:130-1524mm |
Polyester (PE) Silicone Modified Polyester (SMP) Polyvinylidene difluoride (PVDF) |

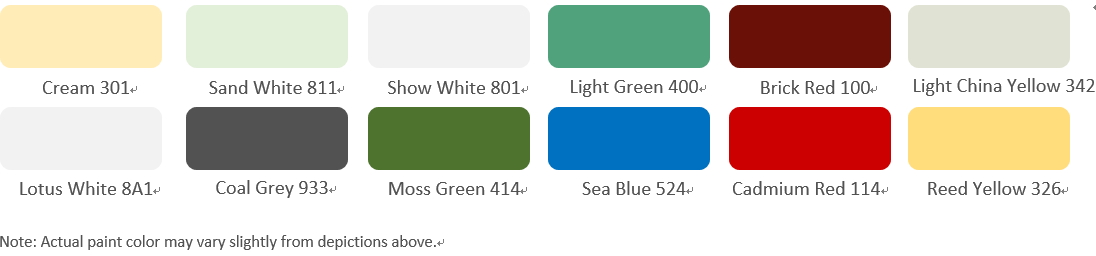

Paint Colors for Topcoat
Paint Colors for Backcoat
Note:
1.Actual paint color may vary slightly from depictions above.
2.Other colors are available subject to inquiry.
Chemical Composition & Mechanical Property :
Chemical Composition (For Reference)
JIS Specification | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Spec. JIS G4304 |
Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Ti% Max. | Other |
SUS304 | 8.0~10.5 | 18.0~20.0 | 0.08 | 1 | 2 | 0.045 | 0.03 | – | – | – | |
SUS304L | 9.0~13.0 | 18.0~20.0 | 0.03 | 1 | 2 | 0.045 | 0.03 | – | – | – |
Mechanical Property (For Reference)
JIS Specification | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Spec. JIS G4304 |
N/mm 2 MIN. Proof Stress |
% MIN. Elongation |
HRB MAX. Hardness |
Bendability: Bending Angle |
Bendability: Inside Radius |
Mn% Max. | P% Max. | S% Max. | Mo% Max. | Ti% Max. | Other |
SUS304 | 520 | 205 | 40 | 90 | No Require | – | 0.03 | – | – | – | |
SUS304L | 480 | 175 | 40 | 90 | No Require | – | 0.03 | – | – | – |
