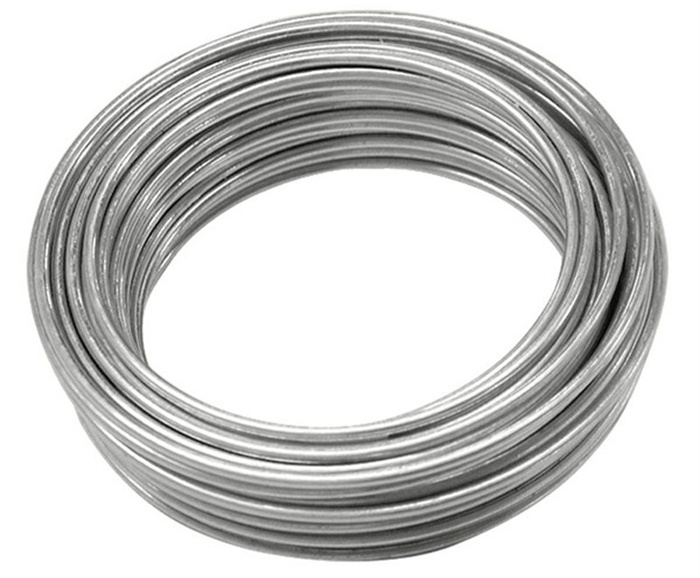

Stainless Steel Wire Rod

Stainless steel is a low-cost and corrosion-resistant material with a high level of durability. It is ideal for both residential and marine applications. Not only is it durable and long-lasting with a perfect surface finish, but it also has excellent strength.
CONTACT US

Product Specification and Size :

Product Specification and Steel Grade

ASTM AISI JIS DIN
Austenitic Series Stainless Steel S30200 – SUS302 X12CrNi188
S30300 – SUS303 X10CrNiS189
S30400 – SUS304 X5CrNi1810
S30403 – SUS304L X2CrNi1911
S30409 – – –
S30451 – SUS304N –
S30430 – SUSXM7 –
S30500 – SUS305 –
S30880 ER 308 SUSY308
S30883 ER308L SUSY308 –
S30888 ER308LSi SUSY308LSi –
S30980 ER309 SUSY309 –
S30983 ER309L SUSY309L –
S30988 ER309LSi SUSY309LSi –
S31080 ER310 SUSY310 –
S31600 – SUS316 X5CrNiMo17122
S31603 – SUS316L X2rNiMo17132
S31680 ER316 SUSY316 –
S31683 ER316L SUSY316L –
S31688 ER316 LSi SUSY316LSi –
Martensitic & Ferritic Series Stainless Steel S41000 – SUS410 X10Cr13
S43000 – SUS430 X6Cr17



Available Size

General Application Welding Grade Application Coil weight
Dia 5.5mm~38mm Dia 5.5mm~15mm According to the request



Chemical Composition & Mechanical Property :

Chemical Composition (For Reference)

JIS Specification
Spec.
ASTM
A240		 Steel Grade Ni% Max. Cr% Max. C% Max. Si% Max. Mn% Max. P% Max. S% Max. Mo% Max. Ti% Max. Other
SUS304 8.0~10.5 18.0~20.0 0.08 1.0 2.0 0.045 0.03 – – –
SUS304L 9.0~13.0 18.0~20.0 0.03 1.0 2.0 0.045 0.03 – – –
SUS316L 12.0~15.0 16.0~18.0 0.03 1.0 2.0 0.045 0.03 2.0~3.0 – –
SUS410S 0.60 11.5~13.5 0.08 1.0 1.0 0.04 0.03 – – –
SUS430 0.60 16.0~18.0 0.12 0.75 1.0 0.04 0.03 – – –



JIS Specification
Spec.
ASTM
A240		 Steel Grade Ni% Max. Cr% Max. C% Max. Si% Max. Mn% Max. P% Max. S% Max. Mo% Max. Ti% Max. Other
S30400 8.0~10.5 17.5~19.5 0.08 0.75 2.0 0.045 0.03 – – N: 0.1 Max.
S30403 8.0~12.0 17.5~19.5 0.03 0.75 2.0 0.045 0.03 – – N: 0.1 Max.
S31603 10.0~14.0 16.0~18.0 0.03 0.75 2.0 0.045 0.03 2.0~3.0 – N: 0.1 Max.
S41000 0.75 11.5~13.5 0.08 1.0 1.0 0.04 0.03 – – –
S43000 0.75 16.0~18.0 0.12 1.0 1.0 0.04 0.03 – – –

Mechanical Property (For Reference)

JIS Specification
Spec.
JIS
G4304
G4305
G4312		 Steel Grade N/mm 2 MIN.
Tensile Stress		 N/mm 2 MIN.
Proof Stress		 % MIN.
Elongation		 HRB MAX.
Hardness		 Bendability:
Bending Angle		 Bendability:
Inside Radius
SUS304 520 205 40 90 No Require –
SUS304L 480 175 40 90 No Require –
SUS316L 480 175 40 90 No Require –
SUS410S 410 205 20 88 180° 1.0 time the thickness
SUS430 420 205 22 88 180° 1.0 time the thickness
